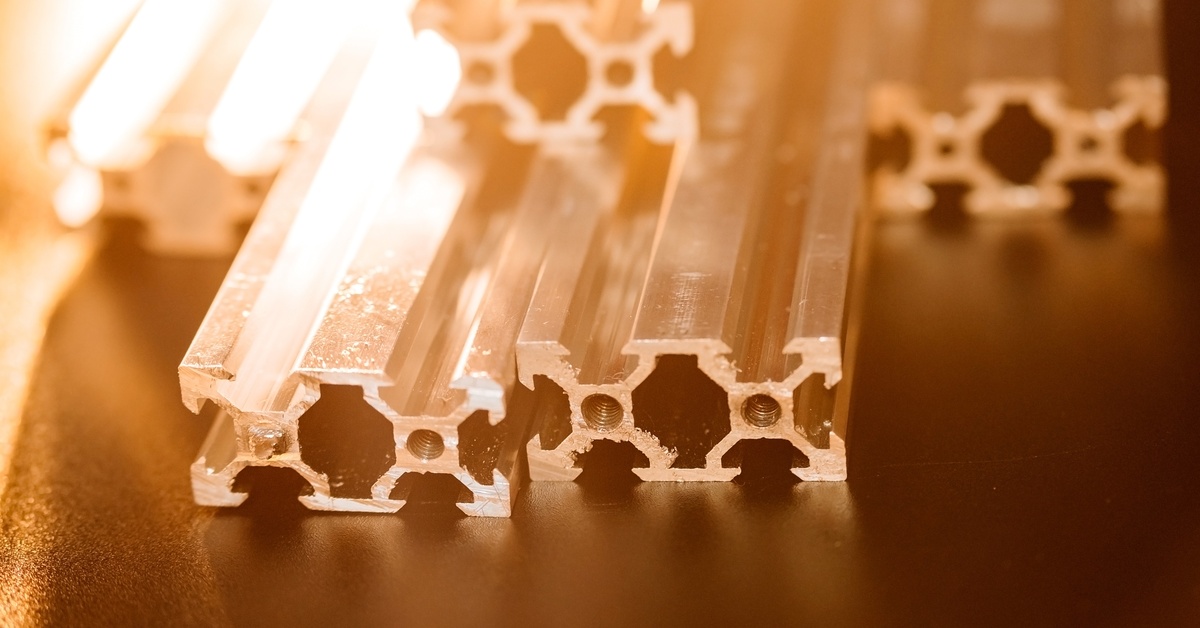

Aluminum T-slot extrusions are well known for their modularity and strength, making them a cornerstone of modern industrial framing. However, you can only unlock the true potential of these structures through a diverse ecosystem of accessories.
These components are what transform a simple aluminum frame into a fully functional, customized solution, whether it's a machine guard, an ergonomic workstation, or a complex automated assembly line.
Understanding the available T-slot accessories is crucial for businesses looking to utilize this equipment. Each component serves a specific purpose, from joining profiles at precise angles to mounting panels and integrating motion systems. By exploring these components, you can better optimize aluminum T-slot accessories for stability, functionality, and efficiency.
What Are T-Slot Accessories?
T-slot accessories are a range of modular components designed to connect, fasten, and enhance aluminum T-slot extrusion frames. These parts fit into the T-shaped slots along the profiles, allowing easy assembly and reconfiguration without welding or specialized machining. This modularity is the primary advantage of the T-slot system, enabling rapid prototyping and adjustments.
The system comprises several categories of accessories, each fulfilling a distinct role in the construction process. These include fasteners for joining profiles, brackets for creating strong connections, and various other components for adding functionality, such as casters for mobility or door handles for enclosures.
Essential T-Slot Fasteners
Fasteners are the fundamental components that hold a T-slot frame together. The choice of fastener often depends on the required load capacity, the angle of the connection, and whether you need to hide the joint or make it easily accessible.
T-Nuts and T-Bolts
T-nuts and T-bolts are the most common fasteners used in T-slot systems. They slide directly into the T-slot channel and provide a threaded hole or stud for securing other components.
- Standard T-nuts: You have to insert these nuts from the end of the extrusion profile. They offer a strong, stable connection, making them ideal for permanent or foundational joints.
- Drop-in T-nuts: You can insert these anywhere along the length of the slot. This feature is invaluable for adding or modifying an already-assembled frame without significant disassembly. They often feature a spring-loaded ball or set screw to hold them in place.
- T-bolts: Similar to T-nuts, these provide a threaded stud that protrudes from the slot. You can use flange nuts to secure brackets and other accessories.
Screws and Connectors
Various screws secure brackets and other accessories to the T-nuts or threaded holes in the extrusions.
- Button head cap screws (BHCS): With their low-profile, rounded head, these screws are common for attaching gussets and brackets where you need a smooth finish.
- Socket head cap screws (SHCS): These provide a higher torque capacity due to their cylindrical head and internal hex drive, making them suitable for high-load connections.
- End fasteners: These specialized connectors create a hidden, right-angle connection between two profiles without external brackets. They require a counterbored access hole in one profile to allow the screw to be tightened into the end of the mating profile. This method provides a clean, aesthetic finish.

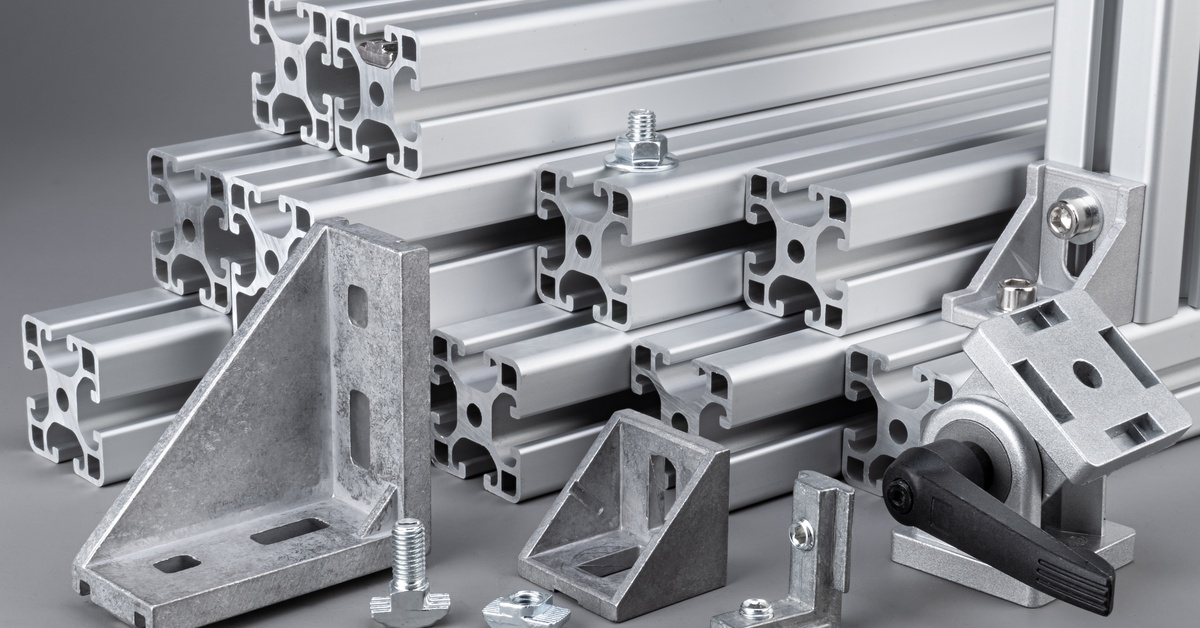

Structural Brackets and Gussets
While fasteners create the connection points, brackets and gussets provide the structural integrity, especially for joints that bear significant loads or require precise angles.
Gussets
Gussets are triangular or L-shaped plates that reinforce 90-degree connections. They distribute stress over a larger area, significantly increasing the strength and rigidity of the joint. They are available in various sizes and thicknesses to match different profile series and load requirements. Cast aluminum or zinc gussets are common, offering a balance of strength and cost-effectiveness.
Corner Brackets
Corner brackets are another essential component for creating right-angle joints. They can be internal or external.
- External corner brackets: These are simple, robust brackets that mount to the exterior faces of the two profiles being joined. They are easy to install and provide substantial strength.
- Internal corner brackets: These fit inside the T-slot, creating a hidden joint. While they offer a cleaner appearance, they may provide slightly less rigidity than a comparable external gusset. They are ideal for applications where aesthetics are a primary concern.
Pivot Joints and Hinges
For applications requiring motion, such as doors, guards, or adjustable fixtures, pivot joints and hinges are indispensable.
- Pivot joints: These accessories allow profiles to rotate relative to one another. They often include friction-adjustment features that will enable the user to control the pivot's resistance. This is useful for creating adjustable monitor arms, tool holders, or hinged panels that need to stay in a set position.
- Hinges: Available in plastic or metal, hinges work for doors and access panels on machine enclosures. They come in various styles, including lift-off hinges that allow for easy door removal and standard butt hinges for permanent installation.
Functional and Finishing Accessories
Beyond the core structural components, a wide array of accessories adds functionality and a professional finish to T-slot assemblies.
Panels and Gaskets
T-slot extrusions are frequently used to build enclosures and machine guards that require panel installation.
- Panel gaskets: A technician inserts rubber or PVC strips into the T-slot channel to create a secure, vibration-dampening mount for panels made of materials like polycarbonate, wire mesh, or aluminum composite. The gasket holds the panel firmly in place without requiring additional fasteners.
- Panel mount blocks: For thicker or heavier panels, these blocks clamp directly onto the panel and fasten into the T-slot, providing a more robust mounting solution.
Casters and Leveling Feet
Mobility and stability are common requirements for T-slot structures.
- Casters: Adding casters to a frame transforms it into a mobile cart, workstation, or material handling rack. They are available in various sizes and materials, with options for swiveling, locking, and different load capacities. Casters typically mount to the frame using a base plate that fastens to the T-slots.
- Leveling feet: For stationary frames on uneven surfaces, leveling feet are essential. They screw into the ends of the profiles or into mounting plates, and you can adjust them to ensure the structure is stable and level. They are available with articulating bases to accommodate sloped floors.
End Caps and Slot Covers
These finishing touches improve both the safety and appearance of the assembly.
- End caps: These plastic caps are pressed into the open ends of the extrusion profiles. They cover sharp edges, preventing injuries and keeping debris out of the internal channels.
- Slot covers: These are plastic or PVC strips that press into unused T-slots along the length of a profile. They provide a clean, finished look, prevent dust and dirt from accumulating in the slots, and can be used for cable management.
Building Your Optimal Frame
The basic design of aluminum T-slot extrusions is fully realized through the strategic use of accessories. By selecting the right combination of fasteners, brackets, and functional components, you can design and build robust, highly customized structures tailored to your exact specifications.
A-Line Automation provides T-slot structural framing for a variety of applications and industries. You can collaborate with our team from initial concept to final product, ensuring you get exactly what your business needs. Contact us today to learn more about our process.
